VPN Setup and Config

Project Overview

This project involved designing and implementing a secure Remote Access VPN solution on a Cisco ASA 5506-X firewall to enable users on an external network to access internal (Business) resources.

  Loading config...

Objectives

• Enable AnyConnect SSL VPN access for remote users.
• Provide secure IP address assignment to VPN clients.
• Configure split tunneling to allow access only to internal resources while leaving Internet traffic local.
• Ensure VPN traffic bypasses NAT and routes correctly to the LAN.
• Integrate VPN behind an ISP router with port forwarding to the ASA.

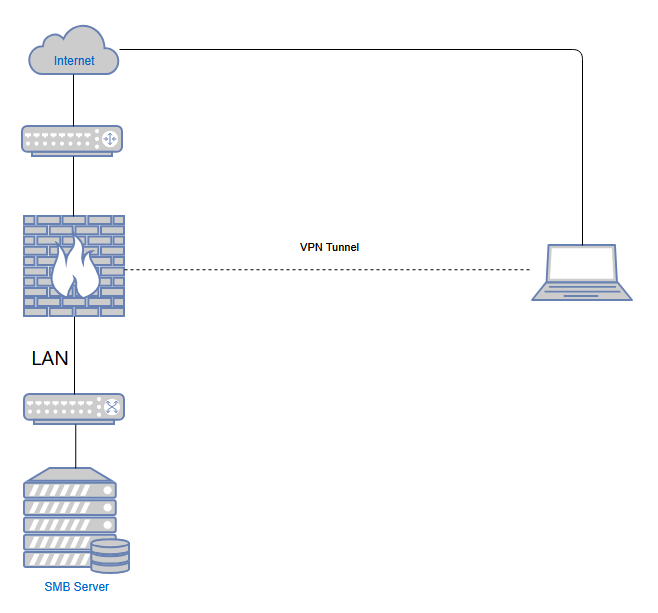

Network Topology

• External Network → ISP Router (port forwarding enabled).
• Firewall (ASA 5506-X) → Provides VPN services, sits behind router, receives DHCP on outside interface.
• Internal Network (LAN) → protected behind the firewall, contains SMB File Share.
• Internal Admin Network (VPN) → clients receive dhcp addresses the Admin pool.
• Internal General Network (VPN) → clients receive dhcp addresses the General pool.
• Remote users connect via AnyConnect client to the router’s public IP on a specific port.

Images

Implementation Steps

1. Create VPN address pools for Admin / General users.
2. Define split-tunnel ACLs to specify which internal networks are reachable.
3. Create group policies and apply the split-tunnel ACLs.
4. Create a tunnel group and link it to the address pool and group policy.
5. Configure NAT exemptions so VPN traffic can reach the LAN without being translated.
6. On the upstream router, configure port forwarding from the public IP to the firewall’s outside interface.

Testing & Validation

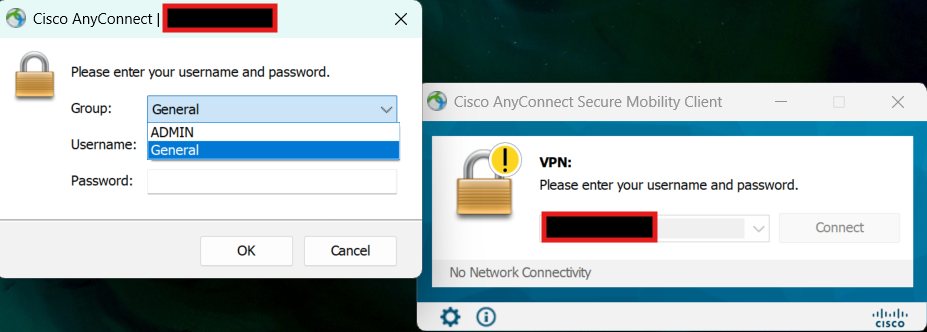

• Connected from an external client.

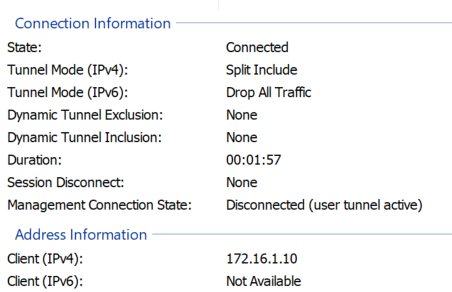

• Confirmed VPN client received an IP.
• Confirmed access to internal LAN resources.
• Verified split tunnel.

Images

Security Improvements

• Use Certificates for Authentication: Deploy certificate-based auth (or combine with MFA) instead of password-only.
• Integrate with External Authentication: Connect ASA to centralized identity (e.g., AD/LDAP/RADIUS) for user management.
• Replace Self-Signed Cert: Install a trusted SSL certificate for the VPN FQDN.
