Load Balancer

Goal

Implement a load-balancing solution capable of horizontally scaling services while ensuring high availability and efficient distribution of traffic

Networking

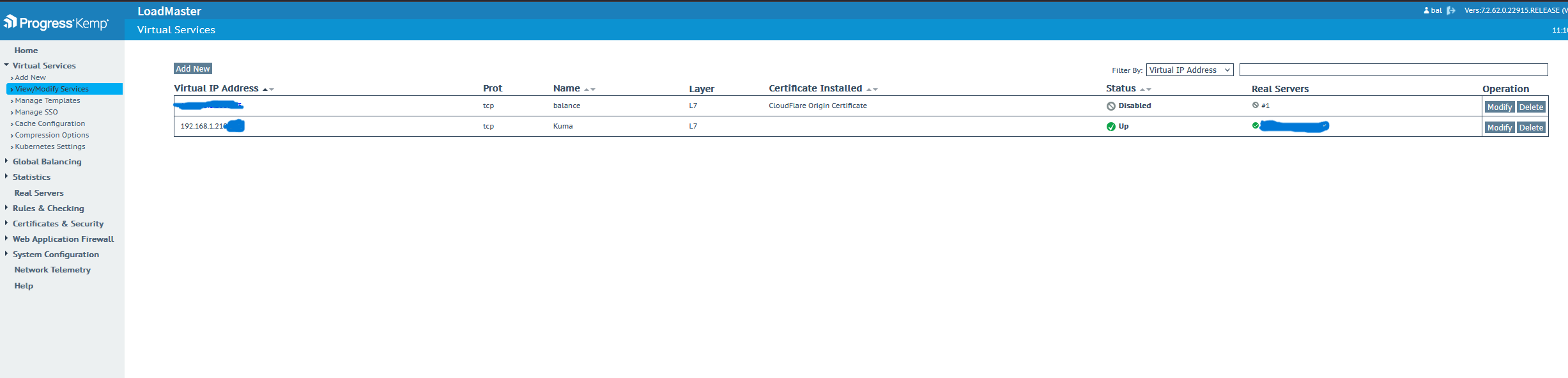

• A Virtual IP (VIP) should be assigned to the load balancer so it can route incoming requests to the appropriate backend service.
• Multiple servers (or nodes) will be required to host the service so load can be distributed evenly.

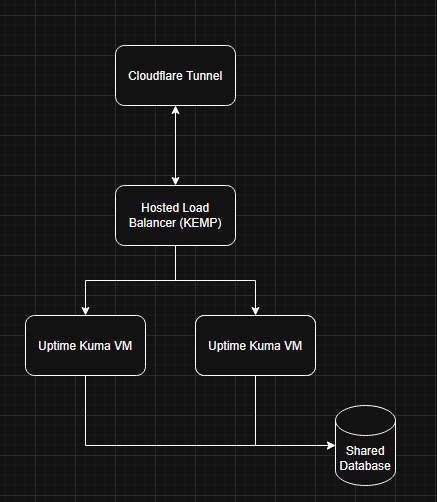

• The intended request flow is: Client Request → DNS → Load Balancer → Server

Images

Security

• This environment is intended for a service that only I should have access to. For that reason, the following security requirements must be met:
• Read and write access must be restricted exclusively to me.
• Remote access from outside the LAN must be supported.
• All traffic should be securely encrypted (e.g., via HTTPS).
• The internal private IP address must remain hidden from external networks.

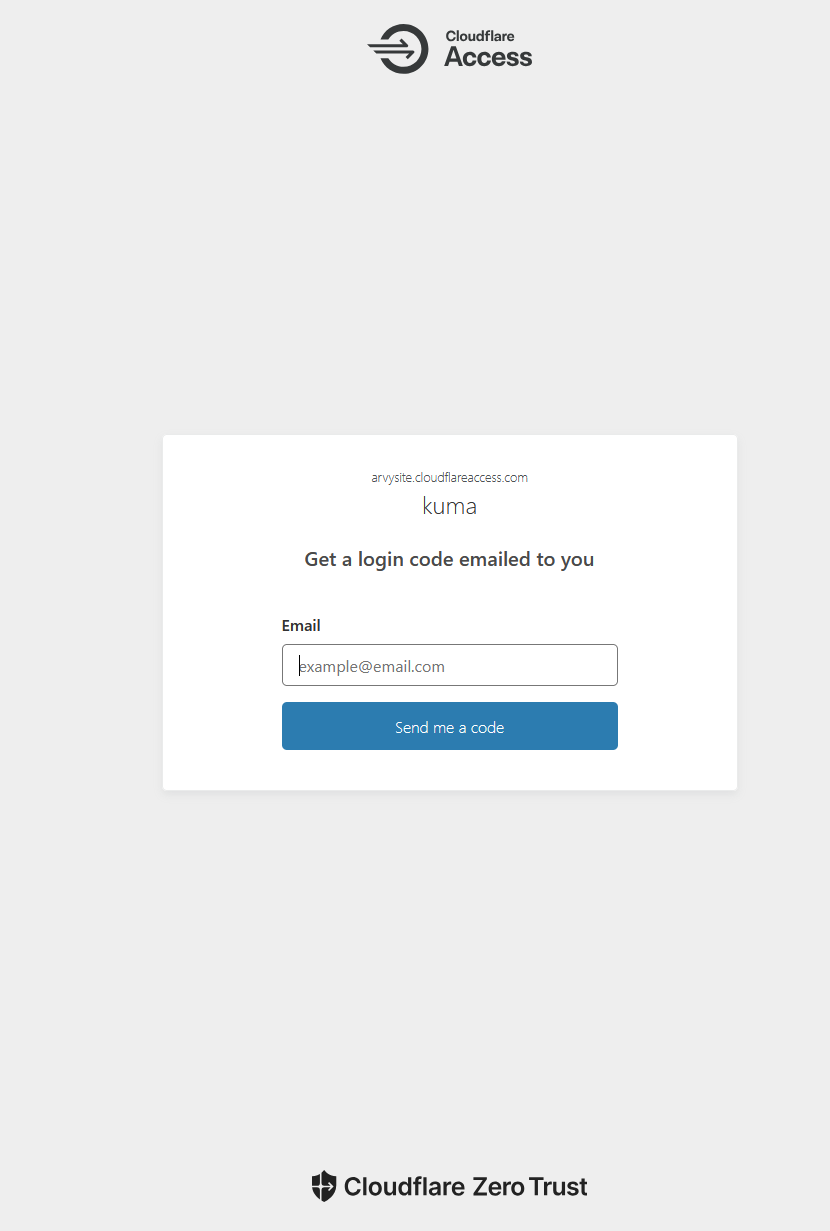

• So what I've got configured is a Cloudflare tunnel with security policies enabled, in my case only a single email can access the service.

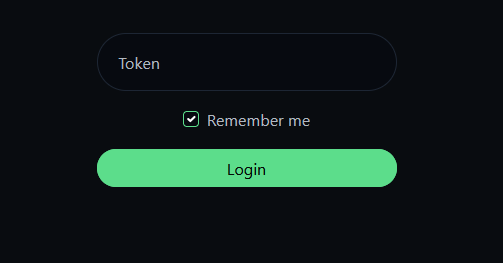

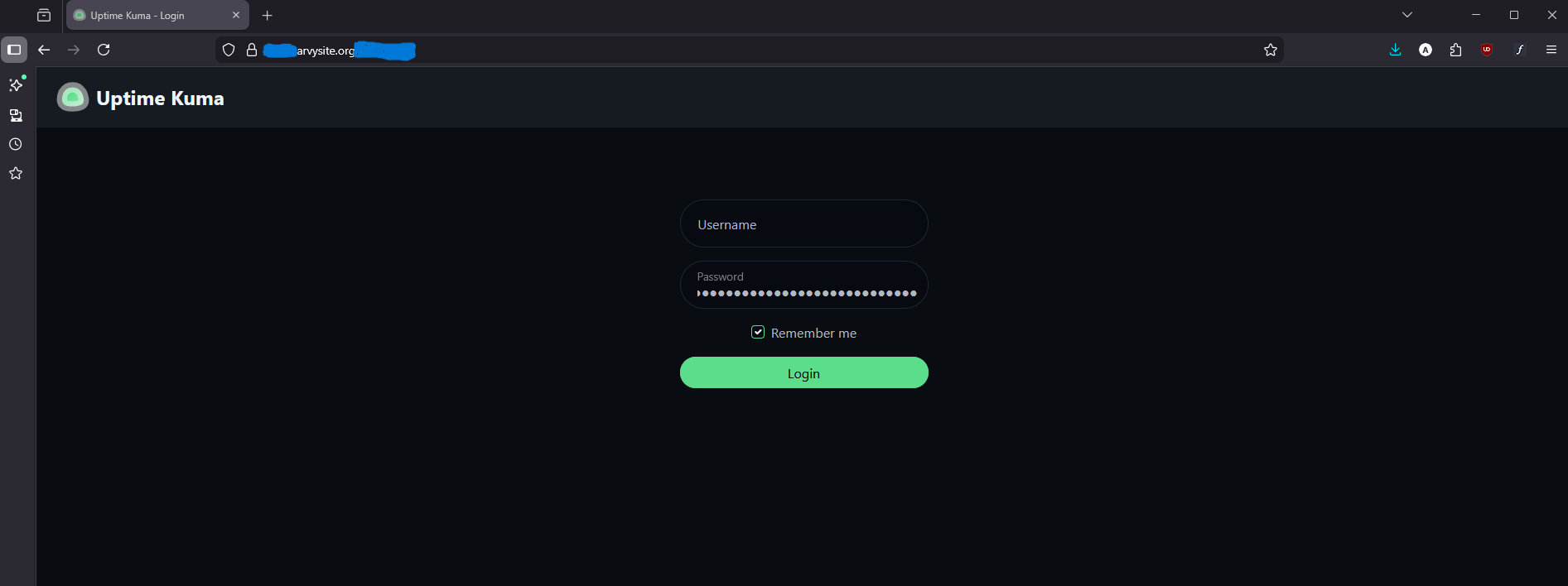

• The first time anyone would try to access the service via subdomain.domain.org, it will ask for ~Cloudflare credentials which is just configured with policy.

Images

Testing

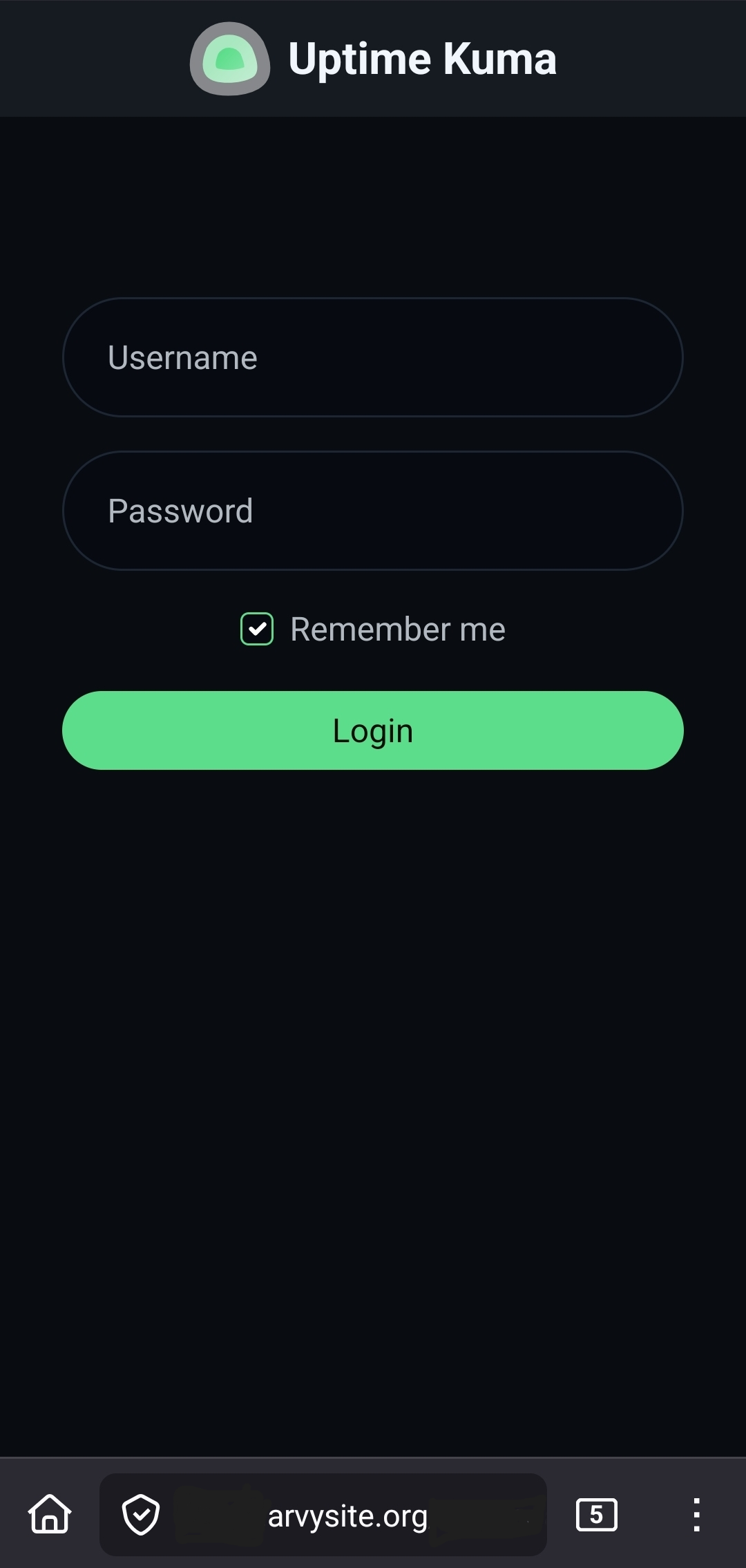

• Check external network can connect to the service
• Block access to restricted users, which is everyone
• Check that the load balancer is distributing load equally

Images

Outcome

Everything is working as expected, the service i'm running is unfortunately not able to run in a load balancer due to using sqlite database and I don't have any other self-hosted services currently

The load balancer itself is working and via a virtual IP the kuma service is being routed, I will setup a separate service to get a better represenatation of the results.

Professional Experience

Currently I have no experience working with load balancers professionally

This is my only practical experience :)
